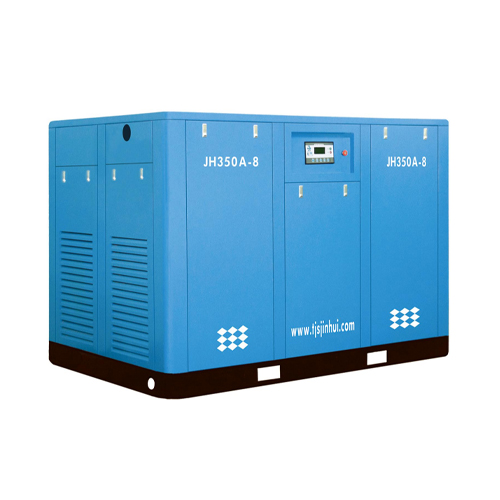

Conventional Fixed Screw Air Compressor-JH Series
Professionally customized high-precision heavy duty nanomaterial air filter with a filtration accuracy of 99.9%@3μm, effectively protecting the main machine and bearings. The lubricating oil filter has an accuracy of 99.9% @10μm, providing clean lubricating oil to the compressor main unit. The high-efficiency oil division system has a tangential intake and a baffle. Under centrifugal force, gravity, and impact, most of the oil droplets have been separated. After being polymerized and filtration of the oil division core, the oil content of the exhaust gas is less than 3ppm.

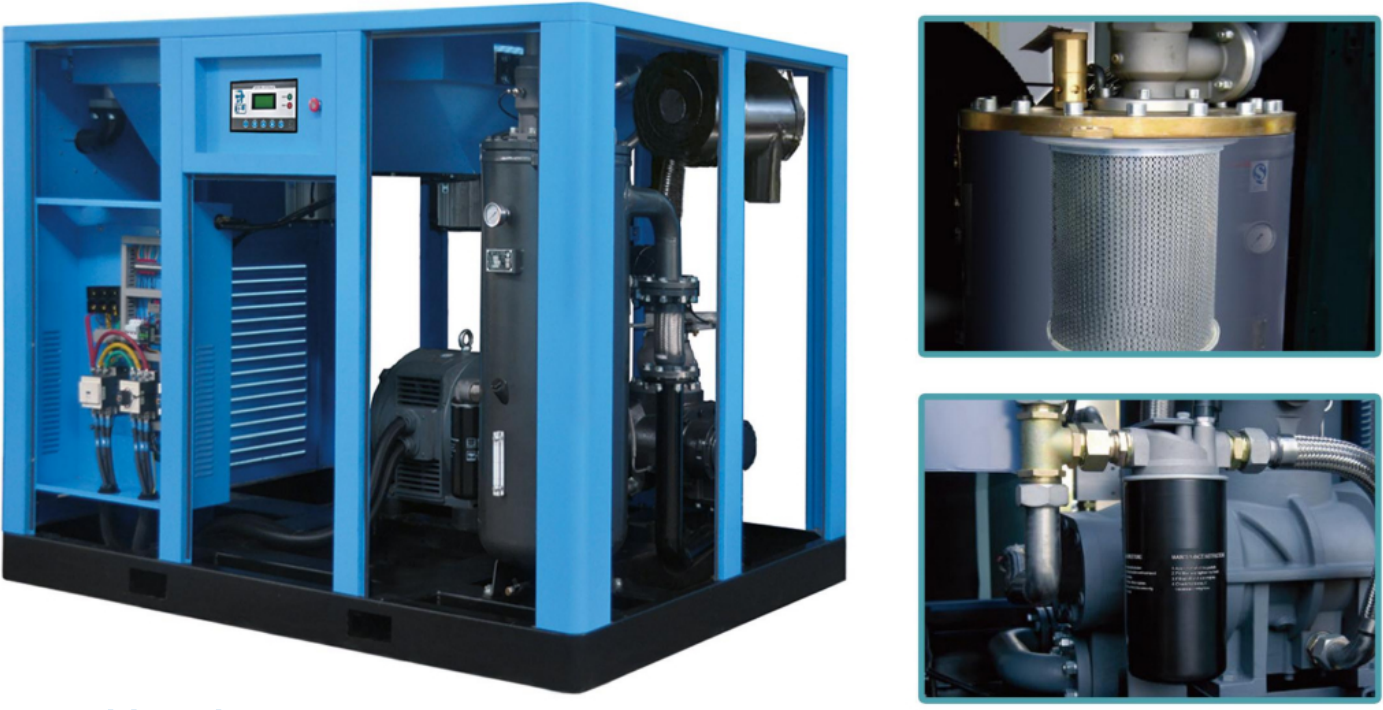

High-Precision Filtration and Oil Separation System:
Professionally customized high-precision heavy duty nano material air filter with a filtration accuracy of 99.9%@3μm, effectively protecting the main machine and bearings. The lubricating oil filter has an accuracy of 99.9% @10μm, providing clean lubricating oil to the compressor main unit. The high-efficiency oil division system has a tangential intake and a baffle. Under centrifugal force, gravity, and impact, most of the oil droplets have been separated. After being polymerized and filtration of the oil division core, the oil content of the exhaust gas is less than 3ppm.
Optimized cooling system:
Cooling system designed based on ambient temperature of 46'C. lt uses special coolant for screw compressors to provide good lubrication and cooling services for the compressor. The fanblades of the cooling fan are optimized to make their efficiency less noise while the noise remains unchanged.A reasonable flow field design in the chassis provides good cooling to the electrical and motor parts, and maintains appropriate temperatures in the chassis. The upper exhaust air design makes it convenient for users to install exhaust ducts.
Direct connection driver is simple and reliable:
The main unit adopts direct coupling drive, no gear growth rate, 1:1 true direct connection, the highest transmission efficiency, and simple and reliable. There is a rigid fixed connection between the motor and the host, which permanently saves the centering of the shaft, reducing vibration and noise. The motor and the main unit float on the foundation through elastic shock absorbers, reducing the conduction of noise and vibration. The motor adopts a well-known brand of high-efficiency motor to further improve the efficiency of the whole machine.
Main Feature
1. -High Cost-Effectiveness: Mature structure, low production and manufacturing costs, high cost performance, suitable for small and medium-sized enterprises with limited budget.
2. -Stable Air Supply: Fixed installation ensures stable operation, no pressure fluctuations, guaranteeing the normal operation of subsequent pneumatic equipment.
3.-Wide Applicability: Suitable for general industrial scenarios such as small and medium-sized manufacturing, hardware processing, building materials, and warehousing.
4.-Low Maintenance Difficulty: Simple structure, easy to maintain and repair, common wearing parts are easy to purchase and replace, reducing maintenance difficulty and time.
5.-Strong Adaptability: Adapts to various industrial workshop environments, stable operation under normal temperature and pressure, not easy to be affected by external factors.
6.-Easy to Match: Compatible with various pneumatic tools and equipment, easy to match with existing production lines, no need for complex transformation.

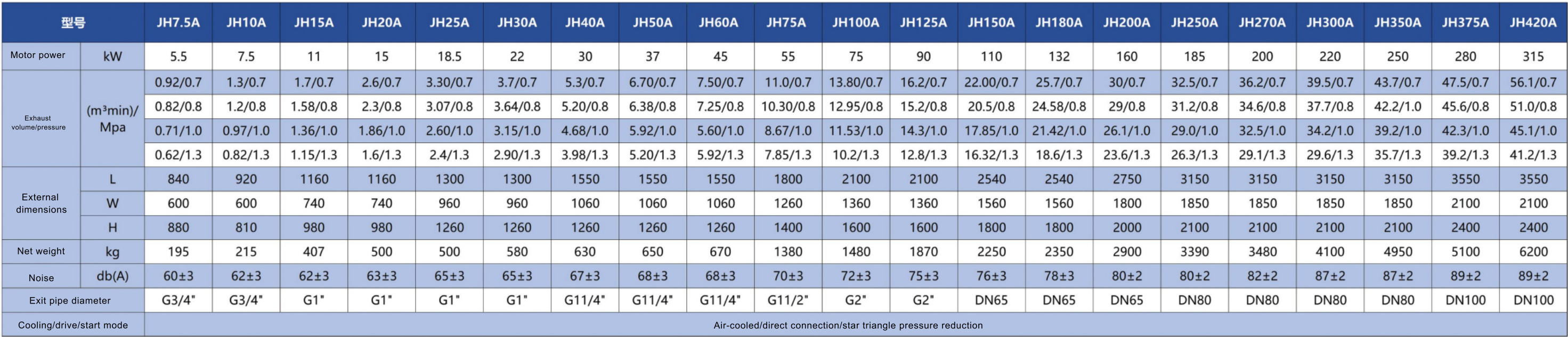

Technical Parameters
