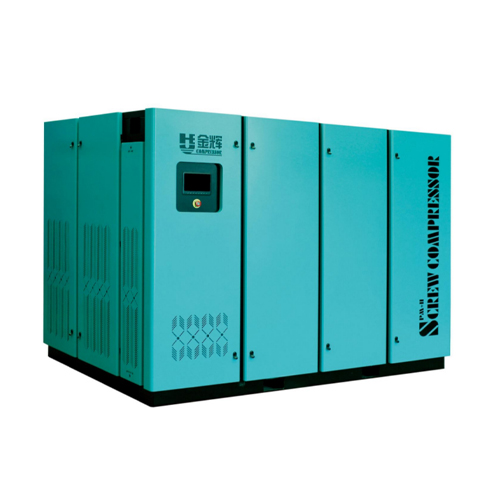

Permanent Magnet Frequency Converter Screw Air Compressor-AD Low Voltage Series (3-5bar)
It is a low-pressure screw air compressor with exhaust pressure as low as2 bar, tailored for low-pressure gas industries such as textile, cement and glass. The high-precision double-layer filter element design is better suitable for harsh working environments such as cement and textile. It is specially designed for low pressure independent main engine, with large rotor running at low speed, lower noise and less vibration, lower discharge pressure resistance resistance and higher efficiency. Forced lubrication is adopted for oil pumps to ensure sufficient fuel injection at extremely low discharge pressures and maintain the optima oil-gas mixing ratio.
High-efficiency rare earth permanent magnet synchronous motor is directly connected and uses large rotors and low speeds to ensure high-performance operation of the machine. Adopt an efficient oil and gas separation system to ensure that the oil content in compressed air is below 3ppm.The cooling area of the oil cooler is increased by more than 30% to ensure normal operation in summer and no overtemperature is achieved. Independently designed host, internal pressure ratio ensures optimal power ratio. It truly achieves 0-100% continuously variable speed, minimizing the loss of useless work to the greatest extent.
Advantages
- Precise Low-Pressure Supply: Stable 3-5bar low pressure output, perfectly matching the needs of textile, packaging, logistics and other low-pressure application industries.
- Energy-Saving & Efficient: PM VSD technology automatically adjusts output according to actual air demand, reducing energy waste and saving operating costs.
- Large Air Volume & Stable: Large air displacement under low pressure, no pressure loss, ensuring the efficiency of subsequent pneumatic equipment and production operations.
- Wide Applicability: Especially suitable for low-pressure demand industries such as textile, packaging, printing, and logistics warehousing.
- Low Maintenance Cost: Simple structure, easy daily maintenance, no complicated operation, reducing later maintenance workload and cost.
- Easy to Install & Use: Compact design, easy to install and place in workshops, intelligent control panel, simple operation for staff.
Main Feature
2. -Permanent Magnet Frequency Conversion (PM VSD): Equipped with high-efficiency permanent magnet motor and frequency conversion system, realizing intelligent adjustment of air output.
3.-Second-Class Energy Efficiency: Meets second-class energy efficiency standards, with optimized structure to ensure energy-saving operation while maintaining low-pressure output.
4.-Large Air Displacement: Reasonable structural design, large air displacement (6.1m³-68.5m³) under low pressure, meeting large air demand scenarios.
5.-Stable Operation: Equipped with intelligent control system, precise pressure control, avoiding pressure fluctuations and ensuring stable low-pressure air supply.
6.-Durable & Practical: Made of high-quality materials, compact structure, suitable for long-term continuous operation, adapting to various industrial working environments.

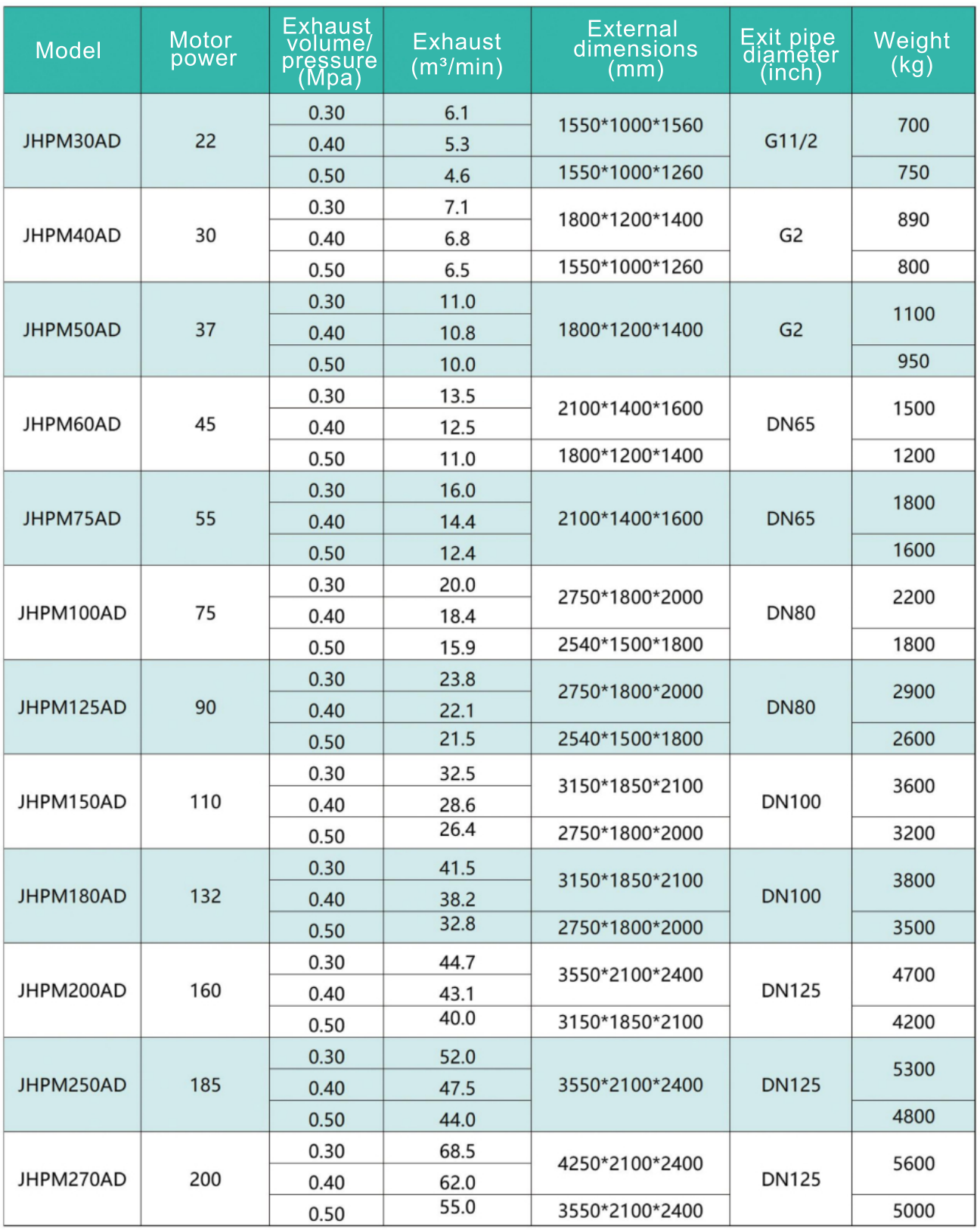

Technical Parameters
